Catalogue Code: 434841916

MPN : T25-G3

2 Available to dispatch immediately

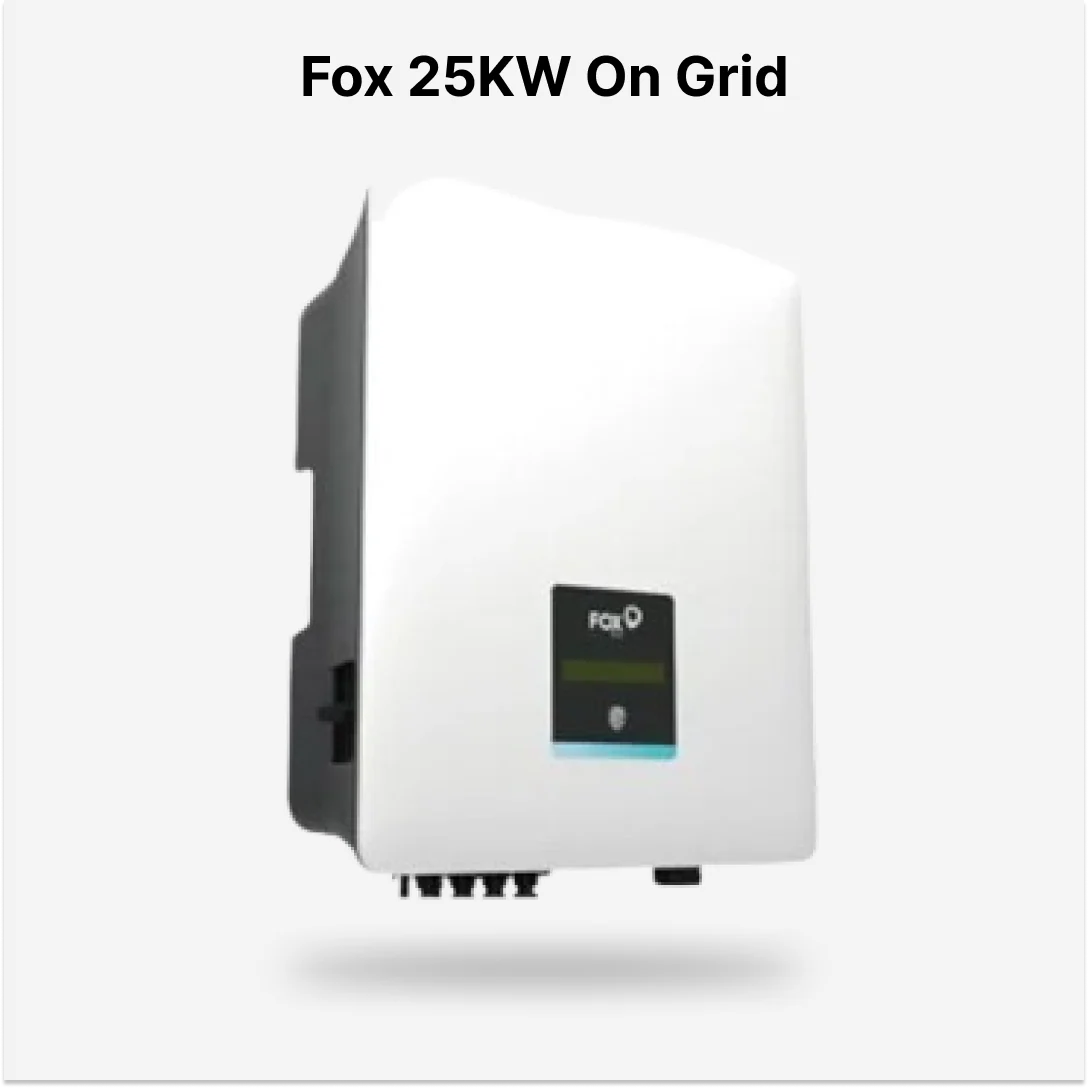

The Fox T25-G3 is a 25kW Three-Phase Inverter ideal for large domestic or small commercial installations.

Part of the T Series (G3), the inverter has a low start-up voltage and boasts a maximum efficiency of 98.6%. Inverters in this range can be monitored in real-time via the smartphone app or web portal.

PRODUCT FEATURES

• High performance – Low start-up voltage and wide voltage range
• Easy installation – Flexible configuration, plug and play set-up
• IP65 rated – Robust construction, suitable for outdoor installation
• Remote monitoring – Available via smartphone app or web portal

TECHNICAL SPECIFICATION

• Max. input power: 37,500 W
• Max. input voltage: 1100 V
• Start-up input voltage: 140 V
• Rated input voltage: 600 V
• MPPT operating voltage range: 140 – 1000 V
• Number of independent MPP Trackers: 2
• Number of strings per MPP Tracker: 2+2
• Rated output power: 25,000 W
• MPPT efficiency: 99.8 %
• Euro efficiency: 97.8 %
• Max. efficiency: 98.6 %
• Dimensions: 370 x 480 x 183.5 mm (W x H x D)
• Weight: 21 kg
