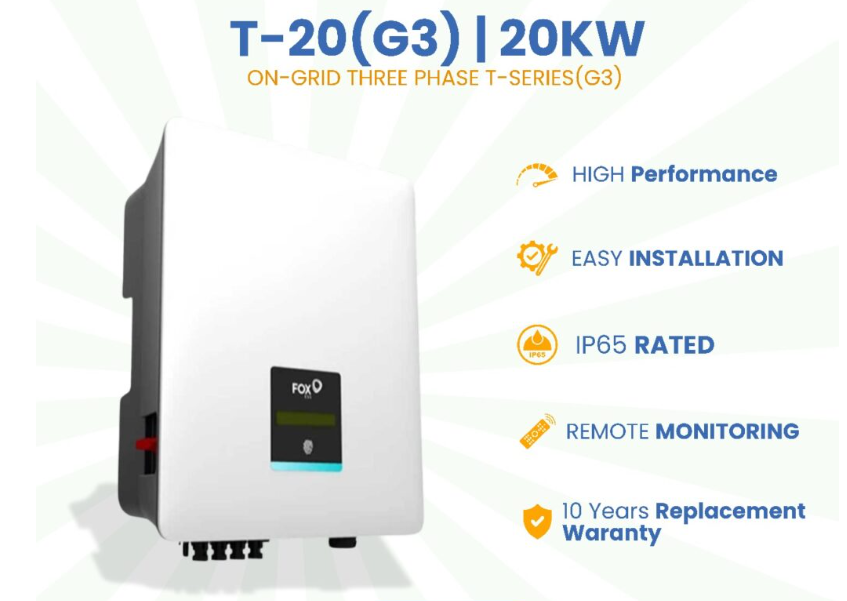

Fox Ess 20kw On Grid 3 Phase inverter

Fox Ess 20kw On Grid 3 Phase inverter

Original price was: ₨319,000.00.Current price is: ₨310,000.00.

Power and electrical specifications:
  • Rated Output Power: $20$kW
  • Maximum DC Input Power: $30$kW
  • Maximum Input Voltage:
    1100V

  • MPPT Operating Voltage Range:
    140−1000140 minus 1000
    140−1000V

  • Phase: Three-phase
  • Max Efficiency:

    98.6%98.6 %

    98.6%

  • European Efficiency:
    98.2%98.2 %
    98.2%

  • DC Startup Voltage:
    160 V (H3-Pro model) or

    140140

    140 V (T Series model)

  • Surge AC Power (1 Second): $22$kW (T Series model)
  • Max DC Input Current:
    28

    A (T Series model)

Features and certifications
  • MPPT: Dual trackers (2 MPPTs) for the T Series, or 3 MPPTs for the H3-Pro hybrid model
  • Protection: Integrated DC switch and AFCI protection
  • Ingress Protection (IP) Rating: IP65 (suitable for indoor and outdoor use)
  • Communication: RS-485, CAN, Wi-Fi, and Fox Cloud support
  • Remote Monitoring: Via app and web portal
  • Certifications: G99 / G100 certified

Physical specifications:
  • Weight: Approx. 55−60 kg (T Series model)
  • Dimensions: Approx.
    700×480×230700 cross 480 cross 230
    700×480×230

    mm (H3-Pro model) or

    370×480×183.5370 cross 480 cross 183.5

    370×480×183.5

    mm (T Series model)

  • Warranty: 5
     years standard, extendable to

    10 years
